BOSCH 500 SERIES DISHWASHER Model SHPM65Z56N
Purchase Information in Appliances
Customer Service: Support  800-944-2904 - Manuals in the desk.
Use and Care Manual

Highlights:

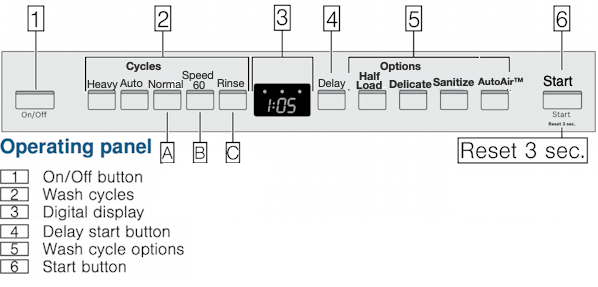

Operating the Dishwasher
donsnotes.com/tahoe/cabin/manuals/bosch-dishwasher/
Switching the appliance on:
  1. Open the door.
  2. Press the On/Off button ( The display of the last selected wash cycle flashes.)
    This wash cycle remains selected if no other wash cycle button 0 is pressed.
    The expected wash cycle duration flashes on the display 8. Select any desired option.
  3. Press Start button
    Close the door within 4 seconds.
    Wash cycle sequence starts.

InfoLight
While the wash cycle is running, a light spot shines on the floor under the appliance door.
Do not open the appliance door until the light point is no longer visible on the floor.
If the appliance door is not completely closed, the light spot flashes*.
Open turn off then ON and START.

Unfortunately it doesn't distinguish between wash/rinse and drying.

Note: Your dishwasher is protected against unintentional operation.
If the appliance door remains open for more than 4 seconds after pressing the Start button,the operation will be paused. Press the Start button again and close the appliance door.

Features: 12 Place Settings, 5 Wash Cycles, Flexible 3rd Rack, 44 dBA Sound Level, AutoAir
Drying:
All Bosch dishwashers use a condensation drying process. Instead of utilizing a heating element at the bottom of a dishwasher, condensation drying involves a number of dishwashing elements that work together to efficiently dry your dishes. Condensation drying is more hygenic and energy efficient than drying with a heating element. Additionally, since Bosch dishwashers do not use a heating element, your plastics are safe in the lower rack.
The final rinse uses high-temperature water to make the dishes very hot.
The stainless steel tub of the dishwasher cools faster than your dishes because stainless steel cools faster than glass and porcelain.
Condensation occurs when the moist air in the dishwasher comes into contact with the cooler stainless steel tub, and turns into water droplets. These water droplets trickle down to the bottom of the dishwashers and are drained.
Manuals:
Quick Start & Safety Guide
Use and Care Manual

Use and Care Manual
Highlights

See You Don't Need to Pre-Rinse Your Dishes.
Should You Prerinse Dishes

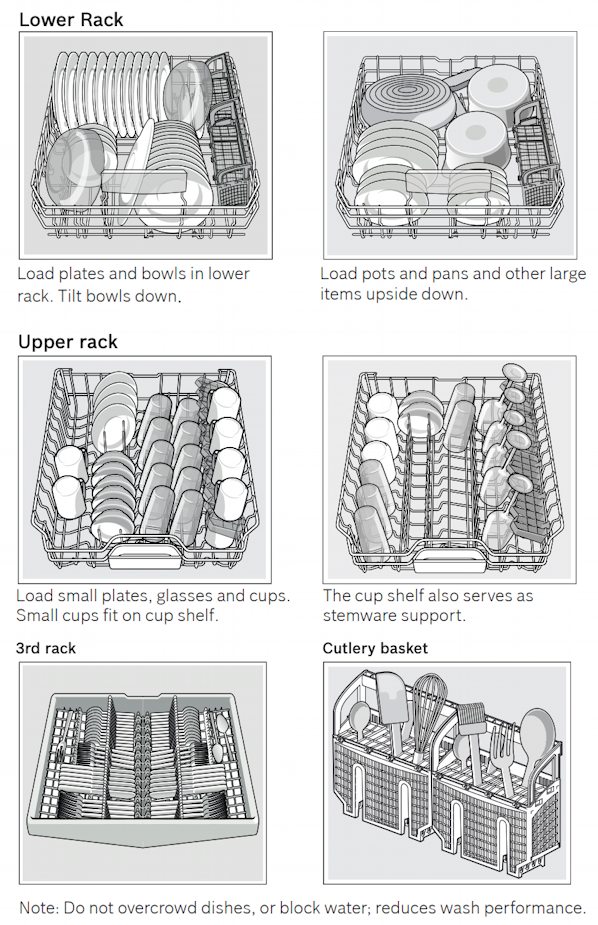

Loading for Optimal Cleaning

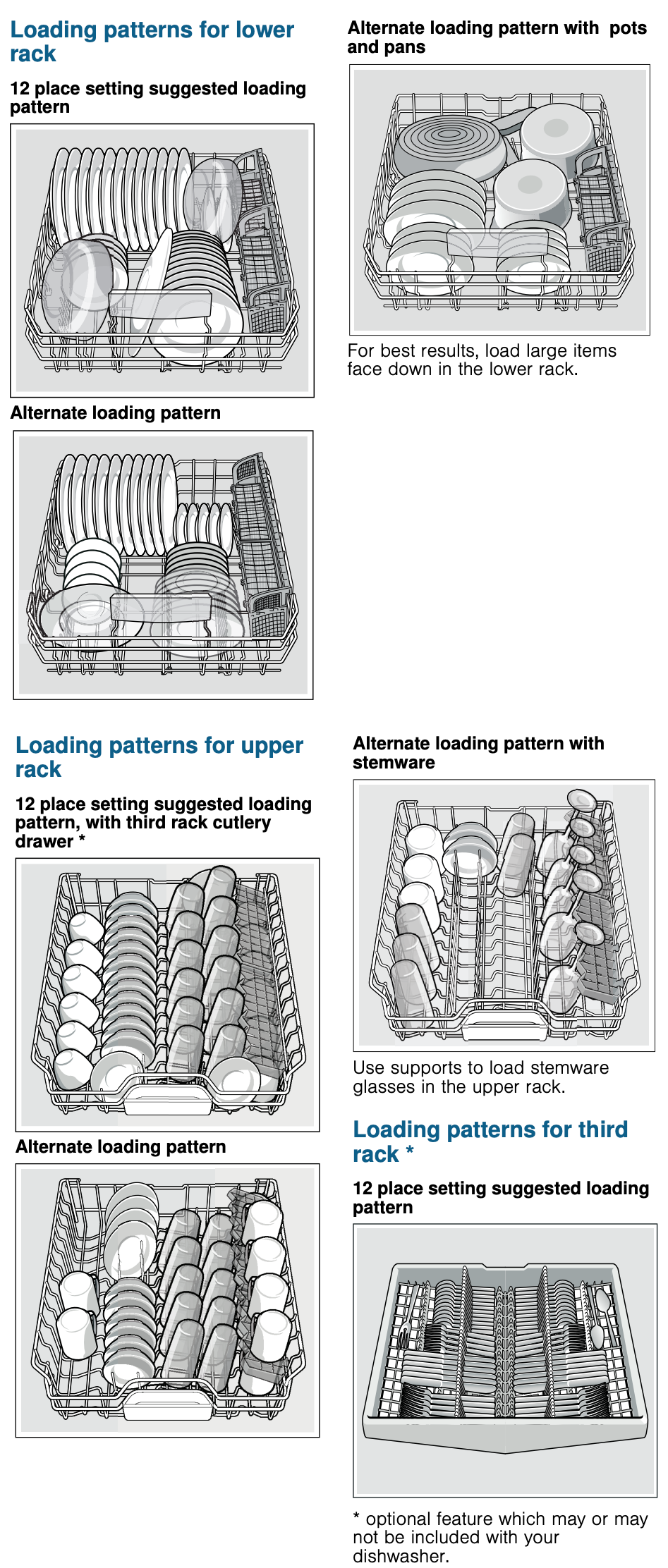

Alternate Loading Patterns

The top rack for silverware can be removed.

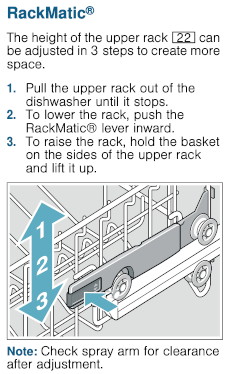

The upper rack and be adjusted up and down with 3 settings.

The upper and lower racks have flip tines that can be folded up or down.
More information on adjustable racks etc. on page 19 of the Quick Start & Safety Guide

A B and C are also used for adjusting the settings.
Intensive drying, Rinse aid, Beep at cycle end, Info light, Auto power off, Auto door open.
See the Quick Start & Safety Guide<

Cycles
Cycles level of
dirt		 what it does examples of
dishes
Heavy baked-on/
greasy
dishes		 longer cycle and
higher temperature		 baked-on lasagna
casserole
Auto not
baked-on		 adjusts time and
intensity automatically
by soil sensing*		 everyday load
Normal not
baked-on		 cycle to save energy
and water		 everyday load
Speed60 fresh, not
dried on		 1 hour cycle which
includes drying		 everyday load
Rinse fresh, not
dried on		 quick rinse, using
less water than hand
rinsing		 everyday load,
to use between
cycles

Cycle Time
To save energy, this dishwasher has EcoSense where the sensors in the dishwasher automatically adjust the cycle length, temperature and water changes based on the amount of food soil and the incoming water temperature. The Smart Control makes decisions that can cause the cycle time and water usage to adjust intermittently. Wash cycle times are based on 120F (49 C) water supply. If your household water supply is different than 120F (49 C), your dishwashers cycle times may be impacted.
Heavy Auto Normal Speed60 rinse
Cycle time
min.		 110 -135 105 -129 130 -135 60 9

Options
Options level
of dirt		 what it does examples of
dishes
Delay any allows you to delay the
start of the cycle up to
24 hours		 any
Half Load light reduces water
consumption		 small load,
mostly top rack
Delicate light reduces cycle length and
temperature		 glasses
Sanitize any increases cycle length
and temperature for
disinfection		 cutting boards,
bottles
AutoAir™ any energy efficient option
for drying, door opens at
end of the cycle		 everyday
dishes

Cleaning and Maintenance

Machine Cleaner:
Removes grease, starch and protein residues from dishwasher interiors.
Ours does not notify you when it needs to be cleaned as far as I know.
Use every few months.
1. clean the filter
2. Put the powder in the detergent dispenser
3. Select Normal or heavy cycle
4. Run a cycle

Filter
Rotate the knob on large object trap in the bottom counter-clockwise to remove and clean.
Cleaning interval Usage
3-6 times a year light to average use
8-12 times a year heavy use

* Soil Sensing is done with a rinse water sensor:
AquaSensor

The AquaSensor is an optical measuring device which measures the cleanliness of the rinse water. The AquaSensor is used according to the wash cycle. If the AquaSensor is active, clean rinse water can be transferred to the next rinse and water consumption can be reduced by 0.81-5 gal (36 liters). If the rinse water is not yet clear, the water is drained and is replaced with fresh water. In the automatic wash cycles the temperature and running time can also be adjusted to the degree of soiling.
