PC Bus Connectors

 The 6 pin connector has the following pinout:
Pin 1; Power, 30volts
Pin 2; Ground
Pins 3, 4; B Twisted pair (-/+)
Pins 5, 6; A Twisted pair (-/+)
Cable shield
 Pins 3/4 are crossed with pins 5/6 at the opposite ends of the cable.
 The transmitter sends clock [Strobe] on 3/4, and data on 5/6.
Some cards may require jumper setting to supply output voltage.

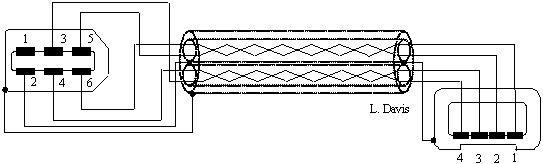

6 pin to 4 pin Firewire [IEEE-1394] interconnection and pinout
FireWire Pinout 6-to-4 Interconnection and Pinout
Pin Number 6 Pin Connector 4 Pin Connector
1 VP TPB*
2 VG TPB
3 TPB* TPA*
4 TPB TPA
5 TPA* (Shell) VG
6 TPA -
TPA is Transmit Strobe, Receive Data
TPB is Receive Strobe, Transmit Data
SOURCE: interfacebus.com

9 Pin Connector FireWire Pinout (1394b)
Pin # Signal Name Function
1 TPB* Twisted Pair B, Minus
2 TPB Twisted Pair B, Plus
3 TPA* Twisted Pair A, Minus
4 TPA Twisted Pair A, Plus
5 TPA (R) Ground, Twisted Pair A
6 VG Power Ground
7 NC No Connection
8 VP Power Voltage
9 TPB (R) Ground, Twisted Pair B
Plug Shield Cable Shield Ground
