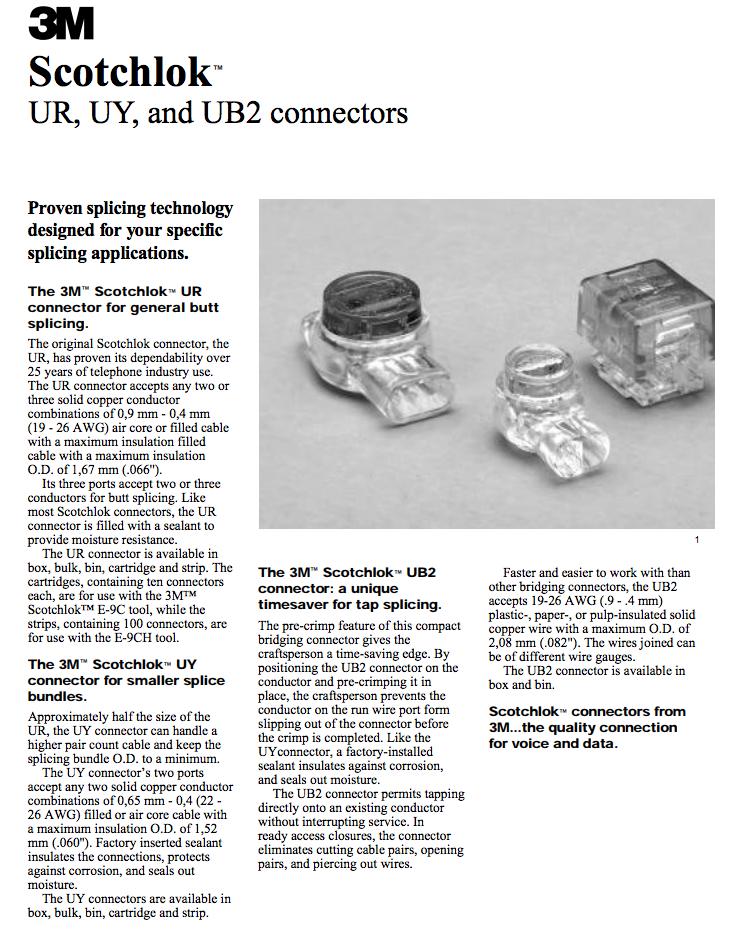

Scotchlok IDC Connectors
Solid wire 19-26 AWG About 3M Conectors
3m-scotchlok-uy2.jpg 2 wire
3m-scotchlok-ur2.jpg 3 wire
Insulation may need to be stripped on 22 AWG
B-Wire Connectors solid or stranded 16-24 gauge wires
white - dry
blue - gel
Butt Connector
red 16-22 AWG; blue 14-16; yellow - 10-12
Crimp B Wire Gel Filled Bean Type
