Weak GPS goes to ATTI mode
This is what I would do now:
- calibrate IMU. It does not matter if DJI Go says it is normal or not - just do it.
- calibrate compass again but this time do it very slowly (rotate your Spark slowly during calibration). You may want to rotate twice (720 degrees) on both axis.
I will not repeat how important it is to do calibration far away from any potential interference. This does include rocks (I have noticed you are flying in rocky terrain). If rocks contain hematite or magnetite you may be in trouble.
IMU calibration must be done very carefully as well. Level surface, no vibrations etc.
After you have done that, go out and fly. Start from palm launch - just in case rocky ground contains some magnetic or iron ore. Watch for any errors appearing on DJI GO. If they do - land. After several flights analyse your flight records for signs of speed, compass, yaw or GPS issues. If you see any again and you followed my steps with IMU and compass calibration, open ticket with DJI.

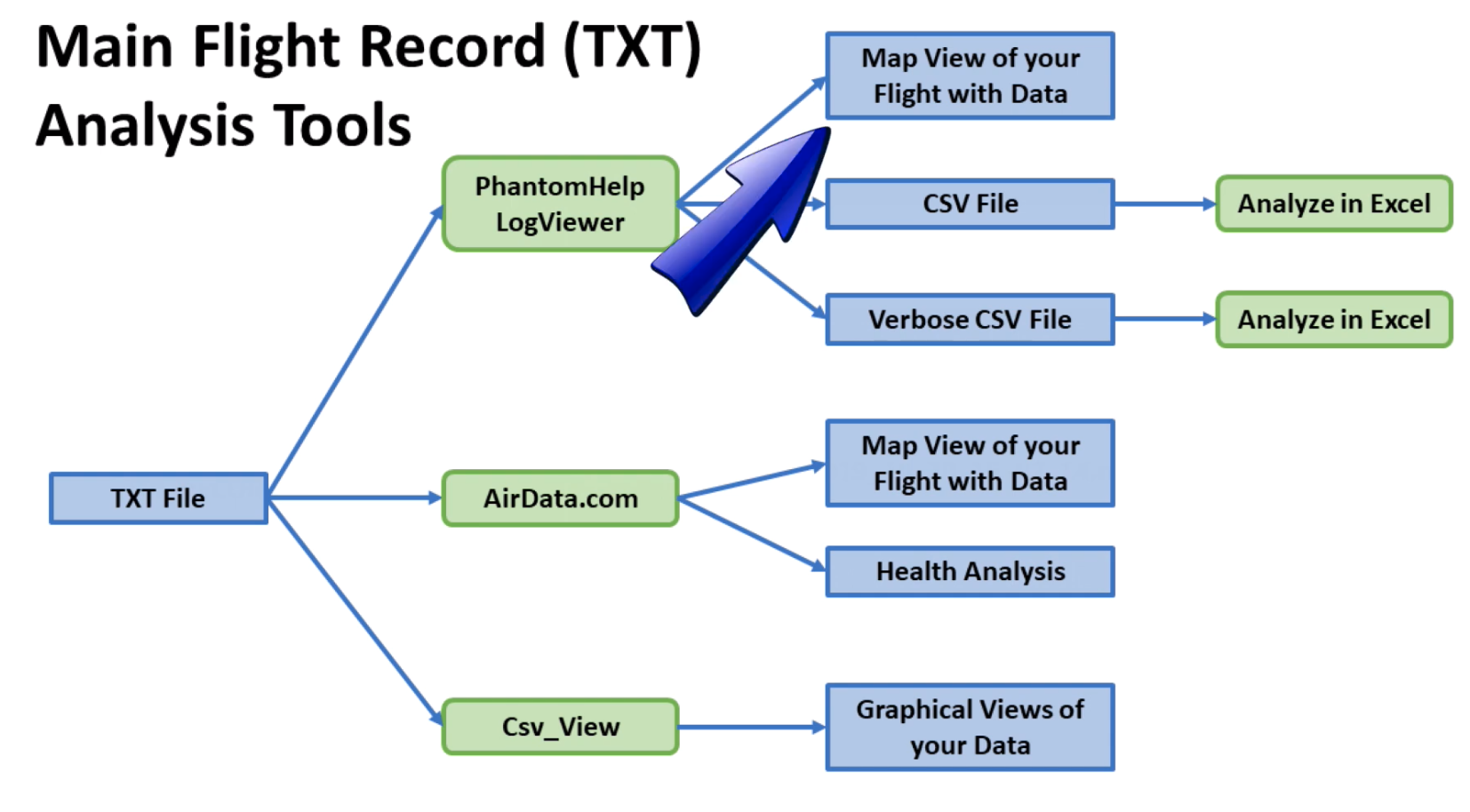

DJI flight record analysis On your phone click menu upper right in DJI App Menu >flight record flight record FlightRecord Detailed flight record MCDatFlightRecords DJI_RECORD Video cache Don't turn off video cache In drone Video Flightrecord Download DJI Assistant 2
